Aluminum Flexible Bus Bar Foil Connectors for Storage Battery
Aluminum Flexible Bus Bar Foil Connectors for Storage Battery
Aluminum Flexible Bus Bar Foil Connectors for Storage Battery -
Aluminum Flexible Bus Bar Foil Connectors for Storage Battery
- OEM/ODMWelcome
- BrandRHI
- CertificateROHS,REACH,IATF16949
- TypeLithium-Ion Batteries
- UsageCar, Bus, UPS, Electric Power, Electric Bicycle, Boat
- Discharge RateLow Discharge Rate
Custom Insulated Aluminium Bus Bar for Storage Battery
Custom Insulated Aluminium Bus Bar for Storage Battery
Insulated Flexible Aluminium Bus Bar widely used for automotive, new energy industry,power equipments, electrical system, low and high voltage distrubition, welcome to send us your drawing or requirements, any shape and sizes can be customized by us
Surface Insulation are PVC dipping sleeves or 3:1 heat shrink sleeves with UL94v-0 flame retardancy.
Aluminum Bus Bar/Connector Advantages:
High Corrosion Resistance
Good Conductivity
Great Heat Exchange
Efficient Thermal Dissipation
Light Weight
Cost Effective
Details:
Material: Aluminium 6061, 6063
Tensile strength: ≥ 180 MPa
Surface Finish: Nickel or tin plated
Size: OEM/ODM Service
Test: Conductivity Testing, Temperature Rise Testing, Bending Testing etc
Surface Plating: 3-12um tin, nickel or silver according to busbar's size
Load Voltage: 220 V to 15 KV according to size

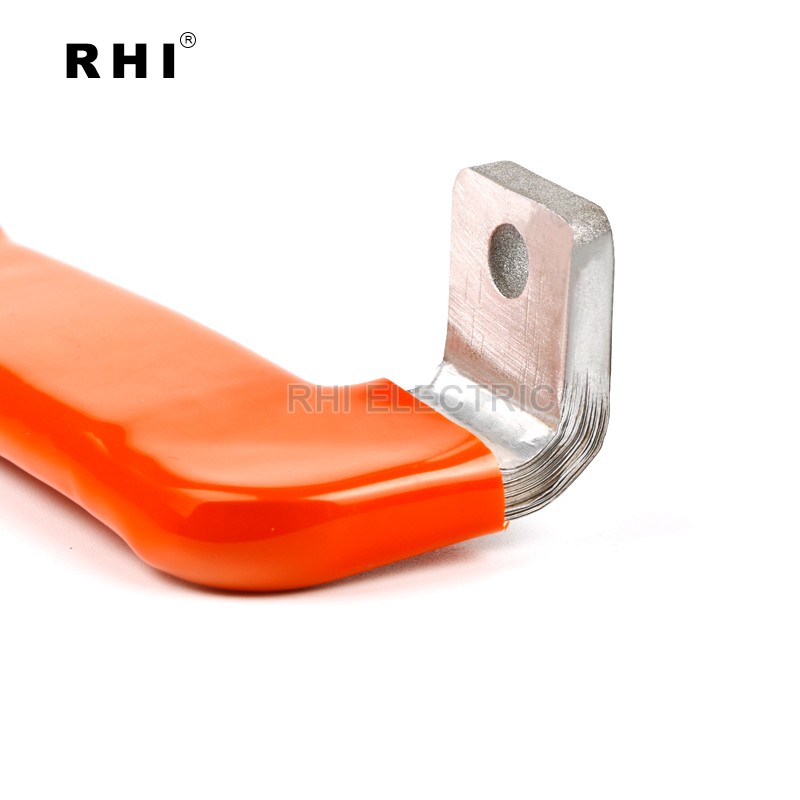

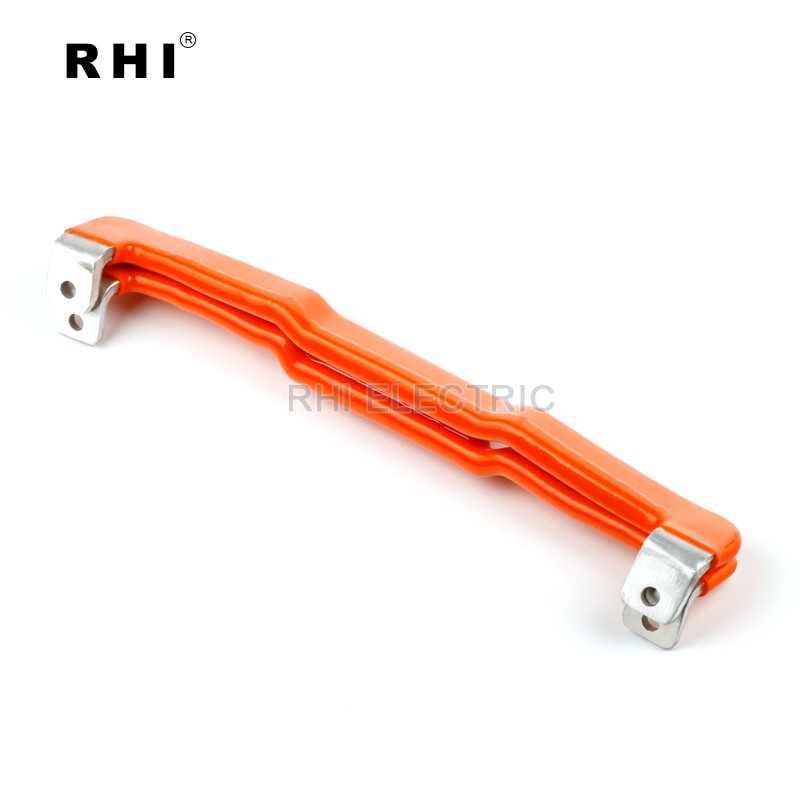

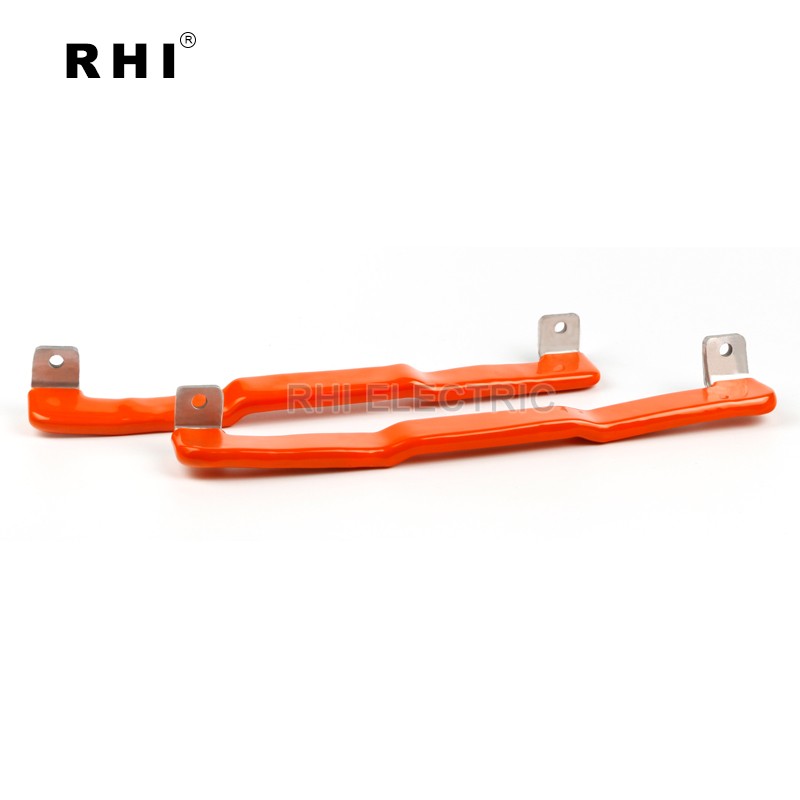

Photo Show:
label: Aluminium Bus Bar Aluminium BusBar
